Our company adopts laser real-time power feedback control and arbitrary waveform control functions, which can be applied to various workpieces to achieve high-quality and stable processing results.
- Through 16 processing specifications and waveform control functions, the system can adapt to a wide range of workpieces and processing requirements.
- High-speed specification switching: Different specifications can be switched instantly, enabling high-speed and high-quality welding.
- By using a homogenized optical system, the soldering point can be processed with a smaller diameter and higher precision.
- Multi-channel laser output: The system supports the selection of multi-channel R4 series laser outputs, with up to 4 independent channels available (optional).
- In simultaneous divergence mode, each output channel can achieve uniform laser power distribution, ensuring easy operation and maintenance.
- The wiring and operation are simpler and more convenient compared with previous models.
- Processing specifications can be entered directly through the LCD screen, allowing simple and accurate operation.
- Equipped with rich input and output signal terminals, the system can be easily connected with various automation equipment.
- Through the online energy monitoring function, the laser pulse output energy (J) and average power (W) can be monitored in real time. For enhanced quality control, the system also provides upper and lower limit judgment functions for laser output energy.
- Using a high-precision QBH optical fiber, the system supports optical cable lengths of up to 10 meters, meeting various application requirements.
- Through optional external communication functions, laser parameters, monitoring values, and other data can be centrally managed. Its compact design helps improve the workshop environment.
- Equipped with a 10.1-inch high-definition touchscreen, which integrates welding process monitoring and laser system control functions.
- This product belongs to the air-cooled series and does not require external cooling water. The intelligent air-cooling system provides energy-saving, efficient, and reliable operation.
- We have 50W, 60W, 100W, 120W, 150W, 200W, 300W types.
-
QCW Laser Welding Machine Back Side Optical characteristic parameter table order
numbernatural parameter W
countleast
valuerepresentative
valuecrest
valueunit 1 Pulse-mode maximum peak power 50W 500 W 60W 600 100W 1000 120W 1200 150W 1500 2 PWM mode maximum power 50W 150 W 60W 180 100W 300 120W 360 150W 450 3 Average power (pulse) 50W 50 W 60W 60 100W 100 120W 120 150W 150 4 Maximum pulse energy 50W 5 J 60W 6 100W 10 120W 12 150W 15 5 Power regulation range 50W 10 100 % 60W 10 100 100W 10 100 120W 10 100 150W 10 100 6 modulating frequency 50W 10 20000 HZ 60W 10 20000 100W 10 20000 120W 10 20000 150W 10 20000 7 Range of duty cycle 50W 10 50 % 60W 10 50 100W 10 50 120W 10 50 150W 10 50 8 Pulse wide range 50W 0.02 50 ms 60W 0.02 50 100W 0.02 50 120W 0.02 50 150W 0.02 50 9 The central wavelength 50W 1080 nm 60W 1080 100W 1080 120W 1080 150W 1080 10 Light and light efficiency 50W 65 % 60W 65 100W 65 120W 65 150W 65 11 Electric light efficiency of the whole machine 50W 30 % 60W 30 100W 30 120W 30 150W 30 12 Spectral Bandwidth (3dB) 50W 3 nm 60W 3 100W 3 120W 3 150W 3 13 power stability 50W 1.5 % 60W 1.5 100W 1.5 120W 1.5 150W 1.5 14 Indicate red light power 50W 200 μW 60W 200 100W 200 120W 200 150W 200 15 Fiber cable length 50W 6.5 10 m 60W 6.5 10 100W 6.5 10 120W 6.5 10 150W 6.5 10 16 Optical fiber cable bending radius 50W 200 mm 60W 200 100W 200 120W 200 150W 200 17 Output fiber core
diameter20 (50,100,200 Customizable) μm 18 The beam mass M² 20 μ m=1.3 50 μ m= (2-4) 100 μ m= (8-12)
(Optional)μm 19 Output method QBH 20 cooling-down
methodforced air cooling 21 Operating environment
temperature range10～35 ℃ 22 humidity ＜70 % 23 Storage
temperature0-60 ℃ 24 50W~120W Size
(Wide X deep X high)483X624X244 (with handle) mm 25 150W / Dual light path dimensions (width X deep X
high)483X767X251.5 (including handle) mm 26 50W~120W
weight58 Kg 27 The 150W / dual-light road
weight85 Kg
50-120W QCW Laser Welding Machine Size -
150w QCW Laser Welding Machine Side Size
150W QCW Laser Welding Machine Bottom Size
150W QCW Laser Welding Machine Front Back Size
Laser Welding Machine Output Jacket Size Method of Installation
- Ensure reliable grounding before operating the laser.
- Verify that the laser system and the output head are placed on a horizontal and stable operating platform. If the laser is installed on a metal platform, ensure good electrical contact between the laser unit and the mounting platform, and make sure the system is properly grounded.
- Ensure that all laser components are securely fixed to prevent them from falling, experiencing strong vibration, or causing damage to the laser system.
- The minimum bending radius of the laser output armored cable shall not be less than 20 cm during transportation, storage, or operation.
- Before installation, confirm that the external AC power switch and the leakage circuit breaker on the rear panel of the laser are turned off. Also ensure that the emergency stop switch, push-button switch, and key switch on the front panel are in the OFF position.
- Do not install or remove the laser output head while the laser is operating.
- Do not look directly into the laser output head. Always wear appropriate laser safety protective eyewear when operating the laser.
- Do not expose the product to environments with high humidity (humidity > 95%).
- Do not operate this product when the ambient temperature is below the dew point temperature.
-

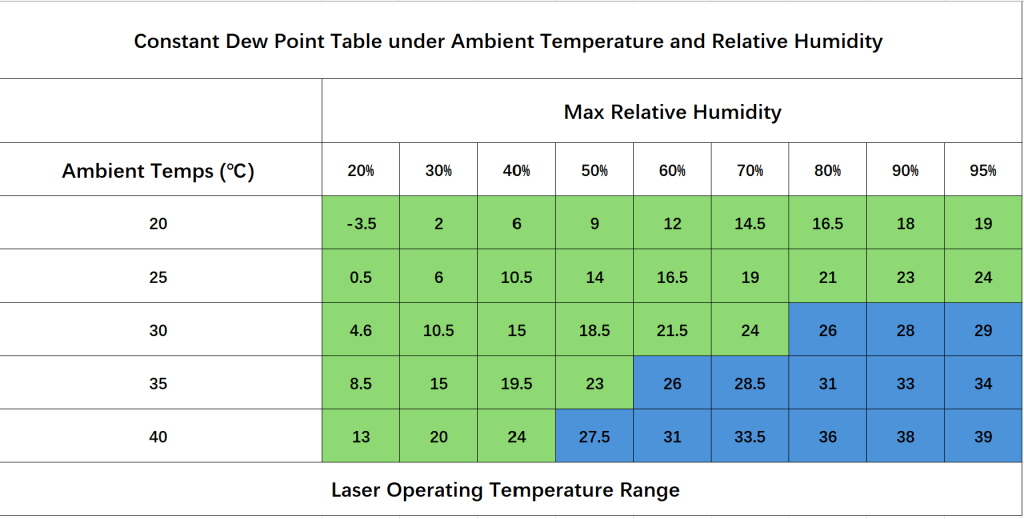

Laser Welding Machine Operating Temperature Range
QBH Laser Head Terminal
Laser Welding Machine Display Screen Installation
Laser Welding Machine Emergency Stop Button
Laser Welding Machine AC Current Connection
AC Wiring Diagram for Laser Welding Machine
